Comprehensive Guide to Understanding and Calculating Payload Capacity

Payload capacity is one of the most critical specifications to understand when operating any type of motor vehicle. Whether you’re managing a fleet of delivery trucks, coordinating shipments for your business, or simply ensuring the safety of your vehicles, understanding payload capacity is non-negotiable.

However, most pickup truck owners do not know the payload capacity of their own vehicles. This lack of understanding leads to dangerous overloading, with AAA reporting that over 200,000 crashes occur annually in the USA due to debris falling from overloaded trucks.

Clearly, knowing your payload capacity has serious implications for safety and performance.

So, join us as we explore the nuances of payload capacity, from how to calculate it to implementing best practices for load distribution.

Introduction to Payload Capacity

Payload capacity refers to the maximum allowable weight that a vehicle can safely carry, including all cargo and passengers. It represents the total load-carrying ability of a vehicle when loaded to its legal limit in addition to its own empty weight.

Payload capacity is typically measured in pounds (lbs) or kilograms (kg). It encompasses the maximum combined weight of everything that is transported within or on top of the vehicle. This includes, but is not limited to:

• For passenger vehicles, the weight of passengers and all luggage/cargo inside the cabin and trunk.
• For trucks, the weight of the driver, any passengers, items in the truck’s bed, and trailer tongue weight if towing.
• For aircraft, the weight of crew, passengers, checked baggage, and cargo placed on board.
• For trains, payload refers to the weight of all goods, containers, and equipment carried.

Payload capacity directly relates to the vehicle’s design limits, including chassis strength, engine power, and suspension ratings.

Exceeding the recommended capacity can negatively affect acceleration, braking, handling, and fuel efficiency. It also risks overloading components, leading to mechanical failures or compromising vehicle stability. Therefore, payload capacity should be carefully followed, and load planning should be done to distribute the load within a vehicle efficiently.

Calculating Payload Capacity

The payload capacity of a vehicle can be determined by using a simple formula:

Payload Capacity = Gross Vehicle Weight Rating (GVWR) – Curb Weight

So, to calculate the payload capacity, we first need to understand what is the gross vehicle weight rating and curb weight.

GVWR and its importance

Gross Vehicle Weight Rating (GVWR) is the maximum allowable weight of the fully-loaded vehicle as determined by the manufacturer.

GVWR= Vehicle’s own weight + Total weight of all passengers, cargo, fuel + Any accessories or equipment installed

GVWR represents the maximum that the vehicle can safely handle for driving and performance based on its engineering design limits.

How to find GVWR:

• GVWR is typically found on a sticker inside the driver’s side door jamb or in the vehicle owner’s manual.
• For trucks, it may be displayed as a placard on the side of the vehicle. GVWR varies by specific model, engine, cab size, truck’s bed length, and other factors.
• The vehicle’s VIN can also be used to look up the GVWR rating when it’s not readily visible.

Understanding curb weight

Curb weight is defined as the weight of the vehicle when it is empty and without payload.

It includes all standard installed equipment and required fluids such as engine oil, coolant, transmission fluid, brake fluid, washer fluid, and a full tank of gas.

Curb weight does not include passengers, cargo, or any aftermarket accessories added.

How to find curb weight:

• A truck’s curb weight can be found listed in the owner’s manual or on manufacturer websites for specific models.
• The easiest way to determine curb weight is to weigh the vehicle when it is completely empty. This actual weight should closely match the published curb weight.
• Weighing should be done on a precision scale like those at a truck weigh station.

Step-by-step calculation process

Once you have the GVWR and curb weight, calculating the payload capacity is simple. Subtract the curb weight from the GVWR to find the maximum weight of passengers and cargo that your vehicle can safely carry.

Payload Capacity = GVWR – Curb Weight

Let’s take an example to understand the calculation of payload capacity:

• GVWR of a truck: 9,000 lbs
• Curb Weight: 5,700 lbs
• Number of Passengers: 3 adults x 150 lbs each = 450 lbs
• Cargo Weight: 1,250 lbs

Payload Capacity = GVWR – Curb Weight

Payload Capacity = 9,000 lbs – 5,700 lbs = 3,300 lbs

Passengers + Cargo = 450 lbs + 1,250 lbs = 1,700 lbs

This is within the payload capacity limit of 3,300 lbs for safe operation.

The Importance of Payload Capacity: Why It Matters

Understanding payload capacity is essential for several reasons, including

• Safety: Exceeding the payload capacity of a vehicle can compromise its stability, handling, and braking performance, increasing the risk of accidents. By adhering to the specified payload limits and optimizing loads efficiently, drivers can ensure safer operation of their vehicles.
• Vehicle performance: Overloading a vehicle beyond its payload capacity puts excessive strain on its engine, transmission, vehicle’s suspension, and other critical components. This can lead to accelerated wear and tear, reduced fuel efficiency, and diminished overall performance.
• Legal compliance: Many jurisdictions have regulations governing vehicle weight limits, including payload capacities. Exceeding these limits can result in fines, penalties, and legal repercussions for drivers and vehicle operators.
• Protecting cargo: Payload capacity directly affects a vehicle’s ability to carry various types of cargo safely and securely. Overloading the vehicle can damage the cargo, compromise its integrity, and pose safety risks during transport.
• Insurance coverage: Insurance policies for vehicles often include clauses related to payload capacity and adherence to weight limits. Exceeding the specified payload limits could void insurance coverage in the event of an accident or damage.
• Resale value: Prospective buyers often look for well-maintained vehicles with a history of responsible ownership. Regularly overloaded vehicles or those vehicles that are operated beyond their payload capacity can experience accelerated depreciation and diminished resale value.
• Legal liability: In the event of an accident involving an over-loaded truck, drivers and vehicle operators can be held legally liable for any damages, injuries, or fatalities that occur. Exceeding payload capacity limits can be considered negligent behavior, exposing individuals and businesses to potential lawsuits and financial liabilities.

Payload Capacity vs. Towing Capacity

Definition and context

Towing capacity

Towing capacity refers to the maximum weight that a vehicle can safely tow behind it with a trailer, camper, or boat. It represents the upper limit of how much the vehicle’s engine, transmission, brakes, and suspension can handle for towing without compromising safety or performance.

Key points about towing capacity

• Typically measured in pounds (lbs) or kilograms (kg)
• Higher for trucks than passenger vehicles
• Factors like vehicle design, engine power, transmission cooling, suspension, brakes, and hitch capability all impact towing capacity
• Published as a maximum rating for each vehicle model that is meant to cover common loaded situations
• Towing above the rated capacity risks accelerated wear, poor braking, vehicle instability, and potential breakdowns
• Calculated separately from but related to payload capacity, since towing reduces the vehicle’s available payload

The formula for calculating towing capacity

The towing capacity of a vehicle can be calculated using the following formula:

Towing Capacity = Gross Combined Vehicle Weight Rating (GCVWR) – Curb Weight

GCVWR = Gross Combined Vehicle Weight Rating (GCVWR) includes the weights of the vehicle, passengers, cargo, and the total weight of the attached trailer.

Curb Weight = Weight of the unloaded vehicle with all necessary operating consumables such as motor oil, coolant, air conditioning refrigerant, etc. but not the driver, passengers, or cargo.

Let’s take an example to understand the calculation of towing capacity:

Consider a hypothetical pickup truck with the following specifications:

• Gross Combined Vehicle Weight Rating (GCVWR): 12,000 pounds
• Truck’s Curb Weight (empty weight of the truck): 5,000 pounds

To calculate the towing capacity of this truck:

Towing Capacity = GCVWR – Curb Weight

Towing Capacity = 12,000 pounds – 5,000 pounds

Towing Capacity = 7,000 pounds

So, the towing capacity of this pickup truck is 7,000 pounds. This means that it can safely tow a trailer weighing up to 7,000 pounds without exceeding its maximum towing capacity.

How payload affects towing capacity

Payload and towing capacity are interrelated factors in determining the overall capabilities of a tow vehicle. The payload directly affects the towing capacity due to the distribution of weight and the vehicle’s overall load-bearing capacity.

Here’s how payload affects towing capacity:

1. Payload as part of GVWR

The GVWR represents the maximum total weight the vehicle can handle safely, including the vehicle itself, passengers, cargo, and tongue weight from the trailer.

Since the payload is part of the GVWR, exceeding the payload capacity limits the remaining capacity available for towing.

For example, if the payload capacity is fully utilized with passengers and cargo in the truck bed, there’s less capacity available for towing.

2. Tongue weight consideration

As discussed earlier, when towing a trailer, part of the trailer’s weight is transferred to the towing vehicle through the trailer hitch, known as tongue weight. This tongue weight contributes to the truck payload.

Excessive tongue weight can overload the vehicle’s rear axle and reduce its payload capacity, limiting the amount of additional cargo or passengers it can carry.

3. Reduced towing capacity

As the payload increases, the available capacity for towing decreases. This is because the overall weight of the vehicle approaches or exceeds its GVWR, leaving less room for the additional weight of a trailer and its contents.

Consequently, exceeding the truck’s payload capacity can lead to unsafe towing conditions, such as reduced stability, braking issues, and excessive wear on the vehicle’s components.

Comparison table: Payload Capacity vs. Towing Capacity

Here are the key differences between payload and towing capacity:

Aspect	Payload Capacity	Towing Capacity
Definition	The maximum weight that a vehicle can carry in its cargo area and passenger compartment, including passengers.	The maximum weight that a vehicle can tow behind it, typically with a trailer.
Calculation Method	Payload capacity = Gross Vehicle Weight Rating (GVWR) – Curb Weight	Towing capacity = Gross Combined Vehicle Weight Rating (GCVWR) – Curb Weight
Types of Load	Includes cargo, passengers, and any additional weight carried within the vehicle.	Primarily involves trailers, such as utility trailers, campers, boats, or other towed load equipment.
Effect on Vehicle Handling	Overloading the payload can affect braking, steering, and stability, especially during turns and emergency maneuvers.	Increased towing weight can impact acceleration, braking distance, and overall vehicle stability.
Regulatory Aspects	Subject to weight limits imposed by transportation authorities, ensuring road safety and compliance with regulations.	Towing regulations often include guidelines for trailer brakes, lights, and safety chains to prevent accidents.
Load Distribution	Payload weight is distributed within the vehicle’s cargo area and passenger compartment, affecting balance and stability.	Towed weight is distributed across the trailer axles, influencing trailer sway and stability during towing.
Factors Affecting Capacity	The Vehicle’s frame and design, suspension, tires, and structural integrity determine the maximum payload capacity.	Towing capacities are impacted by engine power, transmission, cooling systems, and towing package options.
Safety Considerations	Exceeding payload capacity can strain vehicle components, leading to early wear and potential safety hazards.	Towing beyond capacity can result in loss of control, trailer sway, and increased risk of accidents or rollovers.

Factors Affecting Payload Performance

How various vehicle types impact capacity

When it comes to payload capacity considerations, different types of vehicles have unique characteristics and limitations. Understanding these factors is crucial for businesses, fleet managers, and individuals who rely on vehicles for transportation and logistics.

Here are some key payload capacity considerations based on vehicle type:

Trucks

• Payload capacity is a vital factor for trucks, as they are often used for transporting goods, equipment, and materials.
• Factors affecting payload capacity in trucks include the vehicle’s gross vehicle weight rating (GVWR), curb weight, cargo bed dimensions, and truck’s axles configurations.
• Trucks with larger cargo beds and higher GVWRs typically have higher payload capacities, allowing them to carry heavier loads.

Vans

• Vans are popular choices for commercial applications, such as delivery services, cargo transportation, and passenger shuttles.
• Payload capacity for vans is influenced by factors such as the vehicle’s gross vehicle weight (GVW), cargo volume, and interior configuration.
• Cargo vans with extended wheelbases or high-roof configurations can offer higher payload capacities due to increased cargo space and weight-carrying capabilities.

SUVs and crossovers

• While SUVs and crossovers are primarily designed for passenger transportation, they may also be used for light-duty hauling or towing.
• Payload capacity in SUVs and crossovers is determined by factors such as the vehicle’s gross vehicle weight rating (GVWR), seating capacity, and cargo area dimensions.
• SUVs with larger GVWRs and higher seating capacities typically have higher payload capacities, allowing them to accommodate more passengers and cargo.
• It’s important to be mindful of payload limitations when using SUVs for towing trailers or carrying heavy loads. This is because exceeding the vehicle’s payload capacity can compromise safety and performance.

Cars

• While cars are not typically used for heavy hauling or towing, payload capacity considerations still apply, especially for compact or midsize sedans.
• Payload capacity in cars is primarily determined by the vehicle’s GVWR, seating capacity, and trunk space.
• Carrying excessive cargo or exceeding the vehicle’s payload capacity can negatively impact fuel efficiency, handling, and braking performance.
• When loading a car with passengers and luggage, it’s essential to distribute weight evenly and avoid overloading the vehicle to ensure a safe and comfortable driving experience.

Understanding Discrepancies Between Advertised Payload Capacity and Actual Performance

When it comes to payload capacity, there can sometimes be discrepancies between the advertised capacity and the actual performance of a vehicle. Here are some reasons why these discrepancies might occur:

• Manufacturer testing conditions: Advertised payload capacities are often determined under ideal testing conditions in controlled environments. In reality, factors such as road conditions, weather, and altitude can affect a vehicle’s performance and payload capabilities.
• Variations in vehicle configuration: The payload capacity advertised by manufacturers is typically based on specific vehicle configurations, such as engine type, the vehicle’s axles ratio, and additional equipment. However, not all vehicles are configured the same way, and optional features or accessories can impact payload capacity.
• Safety margins: Truck manufacturers often incorporate safety margins into their advertised payload capacities to account for uncertainties and ensure vehicle safety. These safety margins can lead to differences between advertised and actual payload capacities.
• Dynamic loading conditions: Payload capacity can be affected by dynamic loading conditions, such as the distribution of weight within the vehicle and the presence of passengers or cargo. While manufacturers provide maximum payload ratings, the way in which weight is distributed and loaded onto the vehicle can impact its handling, stability, and performance.
• Performance degradation over time: As vehicles age and accumulate mileage, their performance and payload capabilities may degrade due to factors such as mechanical wear, component deterioration, and maintenance issues. Advertised payload capacities are typically based on new vehicles and may not account for performance degradation over time.

Increasing Payload Capacity Safely

8 easy methods

Increasing payload capacity involves various considerations and modifications, depending on the type of vehicle and its intended use. Here are some strategies to enhance payload capacity:

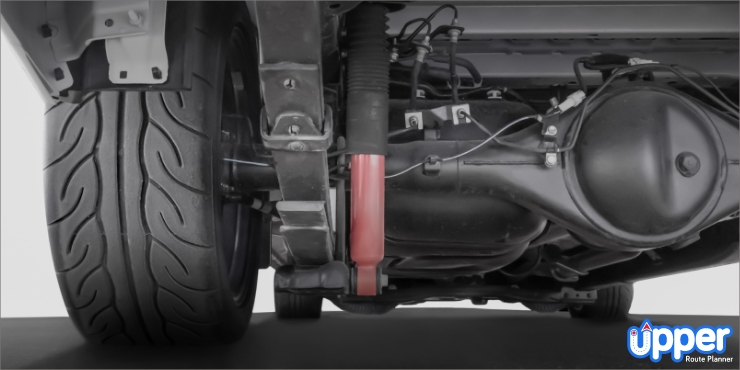

1. Upgrade suspension: Installing heavy-duty or aftermarket suspension components like shocks, springs, and sway bars can allow the vehicle to handle more weight.
2. Use payload-optimized tires: Tires designed for higher load ratings can improve payload over standard passenger tires.
3. Install air suspension: Adjustable air suspension lets you increase spring stiffness when loaded to support more weight.
4. Add payload package: Many manufacturers offer an optional “payload” or “heavy-duty” package with stouter components.
5. Use lighter components: Reducing vehicle weight with alternate bumpers and accessory options can free up the payload.
6. Load smart: Properly distribute weight as close to axles as possible to maximize cargo capacity.
7. Upgrade axles: Installing higher weight-rated axles can transfer more load to the ground.
8. Avoid modifications: Adding heavy accessories like plows, racks, and boxes reduces available payload. So, avoid making such modifications.

Effective Strategies to Decrease Payload Capacity

Decreasing payload capacity can be necessary in certain situations, such as when a vehicle’s load-carrying capabilities exceed legal limits or when operating conditions require lighter loads for optimal performance and safety.

Here are some strategies to decrease payload capacity:

• Install lighter suspension components rated for less weight.
• Use lower load-rated tires and wheels.
• Remove heavy accessories and equipment.
• Switch to a smaller engine with less power for towing/hauling.
• Install lower-rated axles, springs, and other weight-bearing parts.
• For trucks, move to a smaller size (half-ton vs one-ton) with lower GVWR.

Strategic Payload Distribution

Arranging and distributing your truck’s payload properly is crucial for ensuring safety, stability, and optimal performance.

Here are some pro tips for effectively arranging and distributing your truck’s payload:

• Avoid placing all the weight on one side of the truck, as this can cause the vehicle to lean or sway, especially during turns or sudden maneuvers.
• Secure the payload using tie-down straps, cargo nets, or other securing devices to prevent shifting or movement during transit.
• Position heavier items low in the cargo bed or trailer and towards the front to keep the vehicle’s center of gravity low and forward.
• Avoid stacking items too high or creating an uneven distribution of weight that could lead to tipping or loss of control.
• Adjust tire pressure according to the weight of the payload to maintain proper tire load capacity and improve traction and stability.
• Maintain a safe following distance, reduce speed when cornering or braking, and avoid sudden maneuvers that could destabilize the vehicle.
